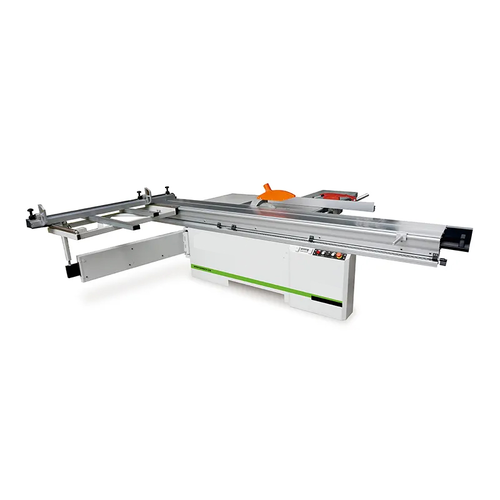

Correct operation steps for panel saw

Many customers do not know how to operate the panel saw or understand its working procedures after purchase. Follow the steps below for normal operation:

1. Before startup, check the power switch and confirm the air pressure reaches 0.7‑0.8 MPa.
2. After zero‑returning, test‑run with offcuts (cut to 100 mm).
3. Carefully review the work order. Calculate the required panel quantity according to the cutting instruction sheet, enter data into the computer and proceed to the next step.
4. Place the panel on the pusher bed and set the stop‑gauge dimension.
5. Adjust the cutting feed speed based on panel hardness and thickness, then advance the pusher bed at a constant speed.
6. When roughly 150 mm of the panel has been cut, the material receiver shall catch it by hand to keep the panel translating steadily until cutting is completed.
7. During cutting, process large‑size pieces first, then cut small‑size pieces from offcuts to maximize cutting optimization rate.
8. Perform first‑article self‑inspection for every new panel specification. Verify length, width and diagonal dimensions meet quality requirements, and adjacent surfaces maintain a 90° right angle. (Simple checking method: flip one cut component and compare it against the next component coming off the machine.)
9. Stack cut panels flat onto turnover trolleys as required. Separate panels with EPE foam sheets. Group items of the same model together and protect panel edges and corners.
10. Switch off the motor during panel transportation to save power and extend motor service life.
11. Upon completion of work, cut off the power supply, clean dust from the machine and clear away leftover materials.
